P3 Gauges 2010-2018 Ram Gauge
P3 V3 Gauge Features
-

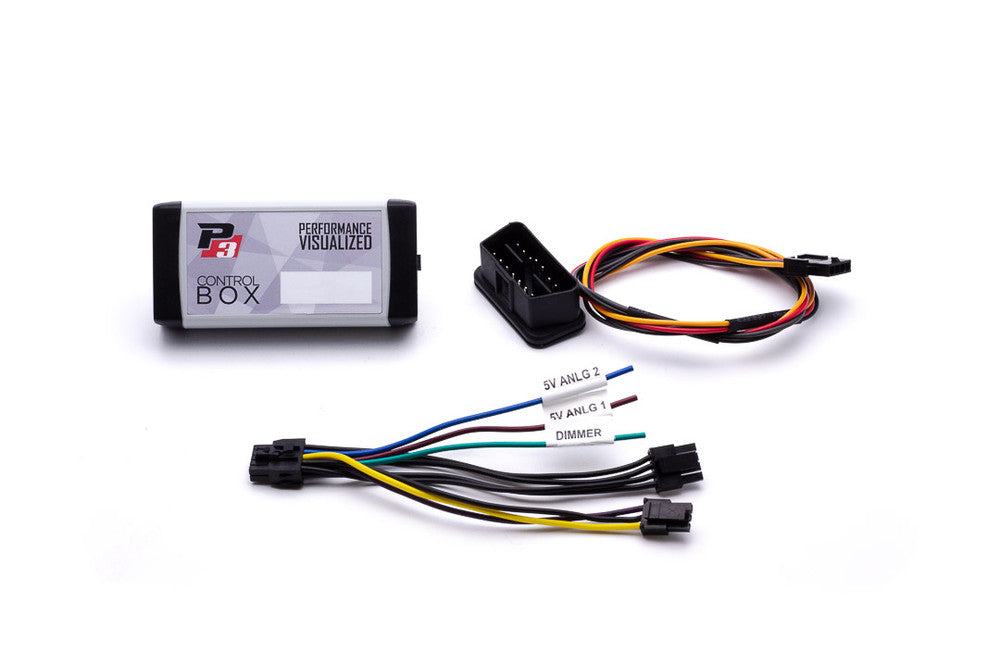

Plug and Play Install - plugs directly into your OBD2 port (want to keep your OBD2 port open? hard-wire harness kit also available)
-

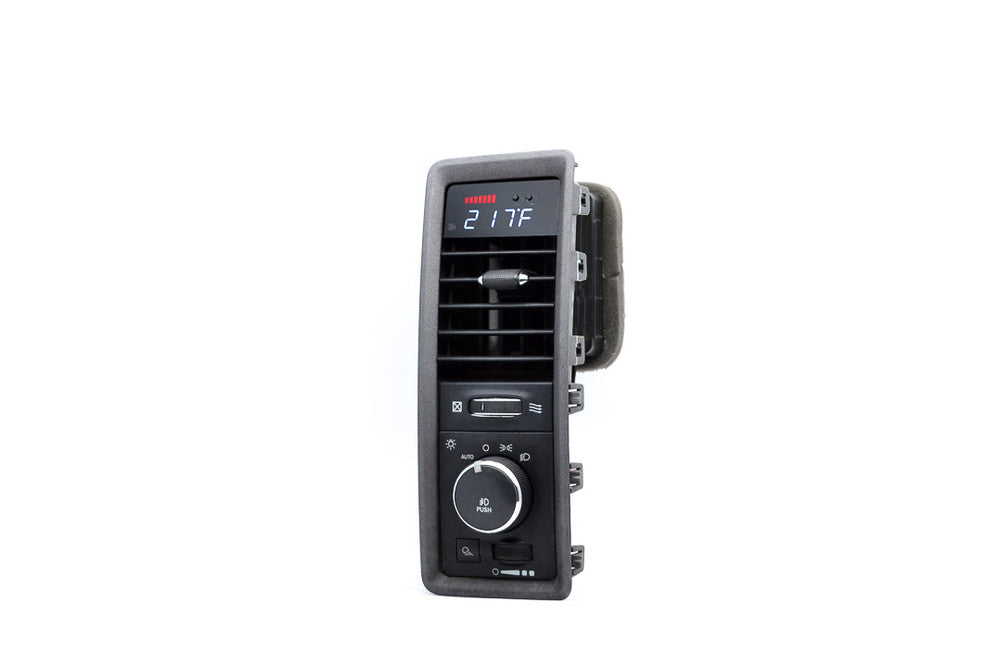

OEM Integration - installs on top of your vent for a sleek install while retaining air flow
-
Versatility - read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
-
Code Reading/Clearing - read and clear diagnostic trouble codes (DTCs) on the fly
P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)
-
Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
- Engine oil temperature
- Coolant temperature
-
Air/Fuel ratio (can be read in AFR or Lambda)
-
Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
-
Intake air temp 1 "AIR 1" (temperature of the air at the MAF sensor)
-
Intake air temp 2 "AIR 2" (temperature of the air at the MAP sensor)
- Throttle angle
- Ignition timing
- Engine RPM
- Exhaust gas temperature
- Battery voltage
- Programmable shift light
-
Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
-
Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
-
Acceleration timers (0-60mph/0-100mph/60-130mph)
-
Braking timers (60-0mph/100-0mph)
